20 inch fat tire ebike A6AH20F 48V 500W

Optional: 26/27.5/29 inch 36V 48V  250W 350W 500W 750W

Frame: 6061 Aluminum alloy,hidden battery

Wheel rim: Aluminum alloy double wall

Front fork: Suspension aluminum alloy

Front brake:  Tektro 160 disc brake

Rear brake: Tektro 160 disc brake

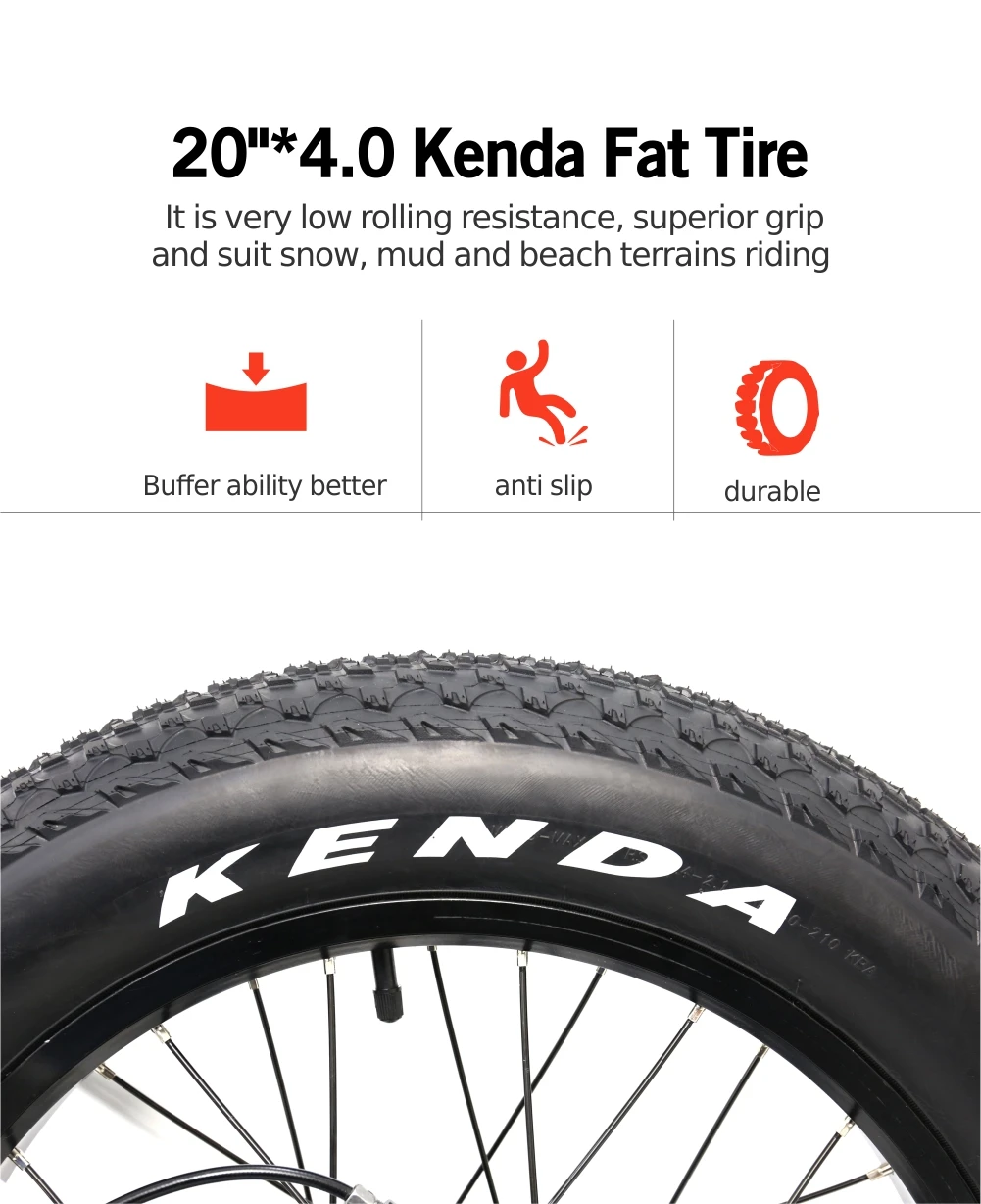

Tyre:  Kenda 20″*4.0 fat tire

Gear:  SHIMANO 21 Speed with  derailleur

PAS:  Five adjustable speed, 1:1 pedal assistant



Description

Fat Tire Electric Bicycle 21 speed e bike for adults two wheels 20 inch

21 speed e bike fat tyre electric for adults two wheels 20 inch

Advantage
1. Power and reliability of 36V 350W hub brushless motor are fairly bulletproof and low maintenance

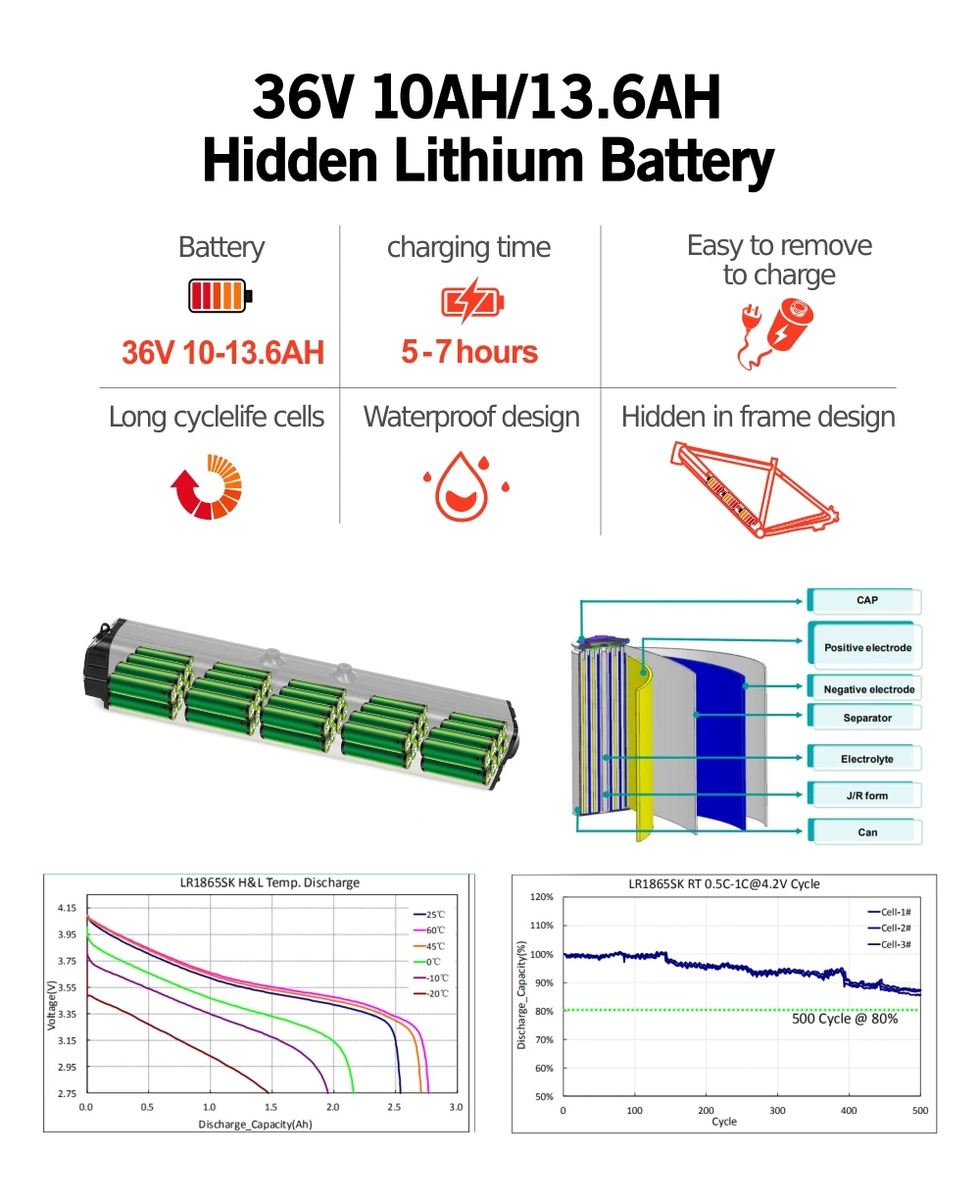

2. 36V 10AH removable lithium-in battery hidden in aluminum with a elegant appearance

3. 20”*4.0 wheel stable for any types of terrains

4. Mini aluminum alloy Light Weight frame suit all age people

5. Soft and comfortable saddle for long time cycling

6. 120kgs of the max load

7. Use newly aluminum alloy frame

8. The tube wall of frame thickness is stronger than previous

9. Adjusting the gears with SHIMANO 7/9/21 Gears while cycling

10. Waterproof wire and hidden controller

Product Description

 21 speed e bike fat tyre electric for adults two wheels 20 inch21 speed e bike fat tyre electric for adults two wheels 20 inch21 speed e bike fat tyre electric for adults two wheels 20 inch21 speed e bike fat tyre electric for adults two wheels 20 inch21 speed e bike fat tyre electric for adults two wheels 20 inch21 speed e bike fat tyre electric for adults two wheels 20 inch21 speed e bike fat tyre electric for adults two wheels 20 inch

specification
Model:A6AH20F
ColourBlack/White
Frame material20” aluminum alloy frame
Wheel size20”*4.0 fat tire
Rim SizeDual aluminum alloy wall
HandleBarAluminum alloy
SaddleComfortable Saddle
Seat PostAluminum alloy
Loading100-120KG
ForkAluminum Alloy fork
BrakeFront and rear 160mm disc brake
Gears TypeSHIMANO 7/9/21/27 speed
Gears BrandSHIMANO Derailleur
Throttle ModeThumb Throttle
Pedal AssistantFive adjustable 1:1 pedal assistant
Controller Power36v Brushless controller
Max. Speed25-30km/h based on flat road without wind
Battery36V/48V 10AH/13AH Lithium battery
Range40-80KM per full charging
Battery Warranty1 years, first year ≥80%, second year ≥65%,
Motor Power36V/48V 250W/350W/500W
Motor Effect≥80%
Motor Warranty1 year
Climbing ability≥15°
ChargerDC/Output:42V2A   AC/Input 100-240V
Charging times:6-8hours
WeightN.W:25Kgs
WeightG.W:32Kgs
Carton Size140cm*33cm*68cm
20’GP container124PCS(5.69*2.13*2.18)
